W control for precision tilling with a difference.
The Gyro MAC system is a system that allows a tractor equipped with a gyroscopic sensor to
control the speed of the tilting of the rotary tiller in accordance with the speed at which the
tractor is tilting. Superior levelness can be maintained even at headland sections and other
parts of a field that are highly uneven. Improved inclination sensitivity also enables the tractor
to react to minute angular variations and limit the normal twisting effect that might occur
during tilling operations.

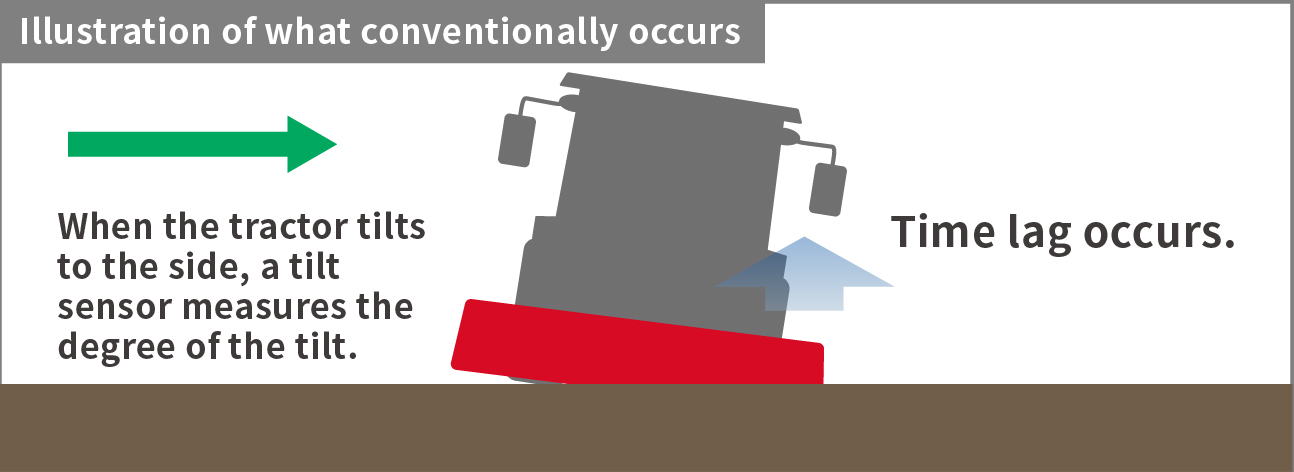

Without the Gyro MAC control feature, unevenness as shown in the circled part is liable to occur whenever the tractor tilts to a significant degree.

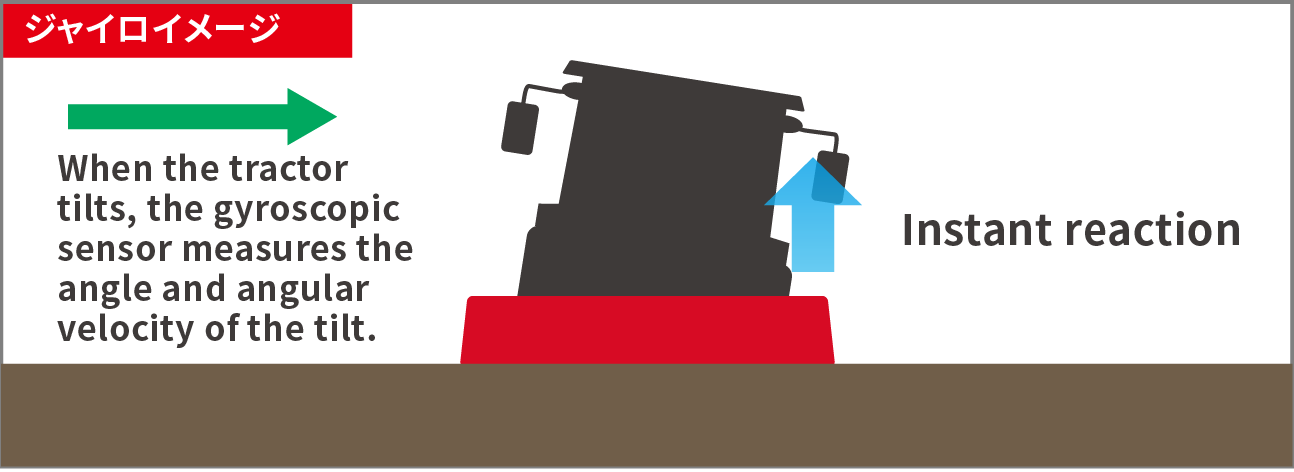

When the Gyro MAC control feature is working, unevenness is far less likely to occur whenever the tractor tilts to a significant degree.

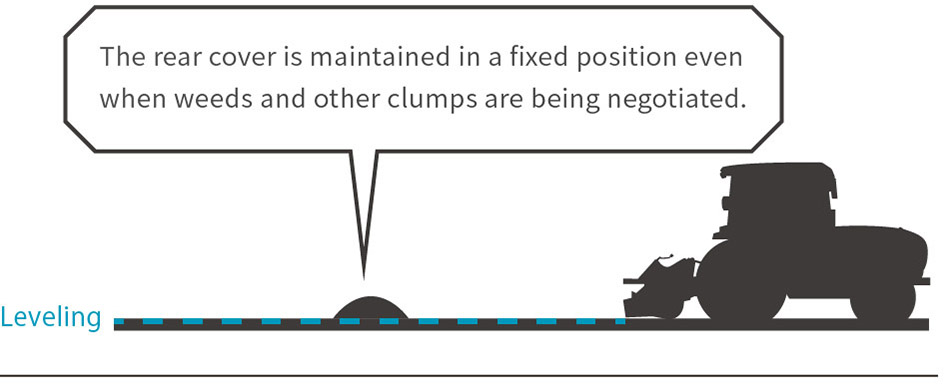

The VRC control system modifies the variables for controlling the plowing depth in line with field conditions. With fields and other plow soles that are relatively flat, this system limits the vertical rotary tiller motion that occurs. When a tractor encounters a footpath between fields, a headland section, or any other location with lots of surface unevenness, this system will actively raise and lower the rotary tiller as needed.
Since the attachment is automatically raised or lowered according to changes in the engine speed, drops in engine speed are prevented to enable stable work to be performed.
